$185.00

HG2458-14P-090
[14dB Sect 90]

HG2458-14P-090

Hyperlink 2.4/ 4.9-5.8 GHz Dual Feed Dual Band 90 Degree Sector Panel Antenna

  • Dual band: 2.4 GHz and 4.9 GHz to 5.9 GHz
  • Dual feed via (2) Integral N-Female Connectors
  • 10° down-tilt mast mounting bracket and hardware
  • Includes mast mounting hardware
  • All weather operation
  • Superior Performance
    The HyperGain® HG2458-14P-090 is a high performance dual-band sector panel antenna which combines high gain with a 90° beam-width. Its dual-band design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5 GHz (4900-5900 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications. This antenna is ideal for use with the following applications:
    • 2.4 GHz 802.11a, 802.11b, 802.11g and 802.11n
    • 4.9 GHz homeland security band
    • 5.3 GHz, 5.4 GHz and 5.8 GHz 802.11a
    • 5.8 GHz ISM, UNII and Mesh Networks

    Dual-Band Design
    The HG2458-14P-090 is actually two antennas in one. A 2.4 GHz antenna and a 4.9 GHz to 5.9 GHz antenna integrated into a single enclosure. Each internal antenna is fed via its own individual connector.

    Rugged and Weatherproof
    This dual-band sector antenna features a heavy-duty fiberglass radome for all-weather operation. The heavy-duty mounting system allows installation adjusts from 0 to 10 degrees downtilt.

    Ideal for Wireless Internet "Cell" Sites
    This is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.

       Details for this product
    L-com Item # HG2458-14P-090
    Manufacturer L-com
    RoHS Status RoHS Compliant RoHS Compliant(More)

       Applications for this Antenna product
    • 802.11a, 802.11b, 802.11g and 802.11n access points and routers
    • WiMAX Technology
    • WiFi Systems
    • Homeland Security and Public Safety Services: Fire, Police, Security
    • Wireless Internet Provider "cell" sites

    Datasheets Datasheets


    Specifications

    Electrical Specifications

    Frequency Range 2400 - 2500 MHz
    4900 - 5900 MHz
    Gain 14 dBi
    Polarization Vertical
    Horizontal Beam Width 90°
    Vertical Beam Width 16° (2400-2500 MHz)
    8° (4900-5900 MHz)
    Impedance 50 Ohm
    VSWR ≤ 1.5:1 avg.
    Front to Back Ratio ≥ 21 dB
    Max. Input Power 50 Watts
    Lightning Protection DC Ground
    Connectors (2) Integral N-Female

    Mechanical Specifications

    Weight 4.4 lbs. (2 kg)
    Dimensions 24 x 6.3 x 2.3 inch
    (610 x 160 x 60 mm)
    Radome Material UV-inhibited fiberglass
    Mounting 1.5" (40 mm) to 2" (53 mm) dia. mast max.
    Operating Temperature -40° C to to 60° C
    (-40° F to 140° F)
    Rated Wind >130 MPH (210 Km/h)

    RoHS Compliant

    Yes

    Wind Loading Data

    Wind Speed (MPH) Loading
    100 34 lb.
    125 54 lb.

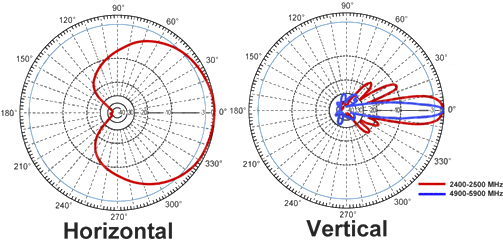

    RF Antenna Gain Patterns
